    Hydraulic 120r/Min Metal Cutting Circular Saw ISO9001 Certification

    Ask Lasest Price
    Brand Name : HJ
    Model Number : GKT624B
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 1-2 months
    • Product Details
    • Company Profile

    Hydraulic 120r/Min Metal Cutting Circular Saw ISO9001 Certification

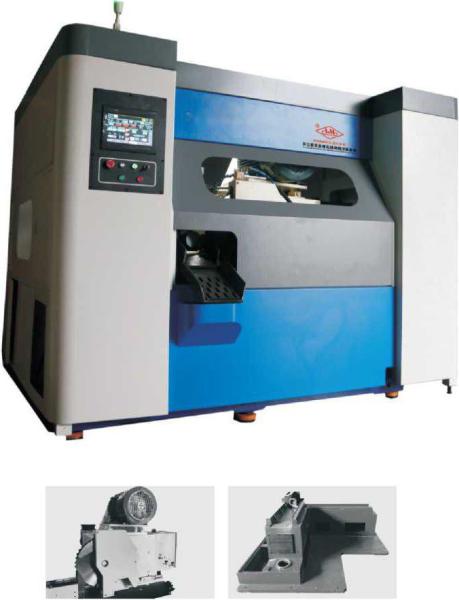

    GKT624B CNC High-Speed Metal Cutting Circular Saw


    Product information


    GKT624B CNC carbide circular saw machine is mainly used for cutting black or non-ferrous metal materials. carbide or cermet circular saw blades have been used as cutting tools and adopts CNC system to control, which can realize the automatic cycle of taking materials from the storage rack, sending to the sawing completion (including the process of material head and tail, the collection of finished work piece, etc., can be completed automatically).


    • The machine has the characteristics of narrow incision, high cutting accuracy, high production efficiency, low comprehensive cost, safety and environmental protection, and high degree of automation.


    ParametersunitSpecifications
    GKT624B
    Saw blade specificationsmmΦ460 x2. 7
    Cutting rangemmRound bar 050 -150 squar bar 50 -110
    Maximum feeding lengthmm600 + / - 0.05
    Saw blade rotation speedrpm20 ~ 120
    Main motorkw11
    The hydraulic motorkw2.2
    Feed drivekw2.0 servo motor + ball screw AC
    Cutting drivekw2.0 servo motor + ball screw AC
    CoolingLubricating cooling
    Hydraulic oil capacityL100L 46#
    The compressed airbar4 ~ 6
    Saw machine sizemmL=2100 W=2060 H=1760
    Net weightkg3000
