    35m/Min 410mm Automatic Horizontal Band Saw For Metal Cutting

    Ask Lasest Price
    Brand Name : HJ
    Model Number : G4024
    Certification : ISO9001
    Price : Negotiable
    Delivery Time : 1-2 months
    • Product Details
    • Company Profile

    35m/Min 410mm Automatic Horizontal Band Saw For Metal Cutting

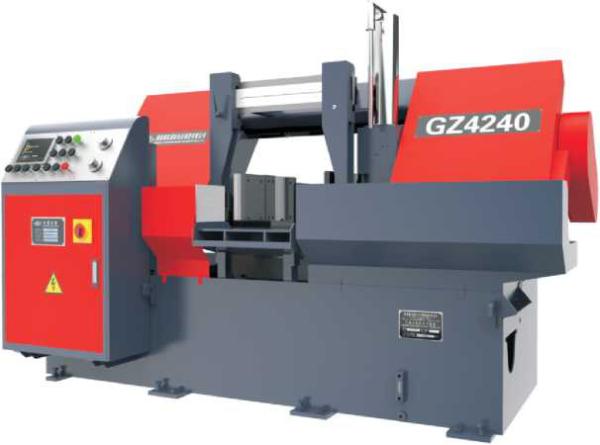

    G4240 Automatic Horizontal Band Sawing Machine


    This machine tool is mainly used for black metal material single piece or batch blanking operation. It is suitable for cutting and step processing of all kinds of metal bar materials and profiles with the specification of 400mm. It can be equipped with beam forming device to cut the materials with small specifications into beams.


    Widely used in Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining, Metal Processing Factory


    parametersunitspecifications
    G4240
    Round stockmmφ410
    The materialmm410X410
    Minimum saw specificationmmφ40
    Saw blade specificationsmm34 x1. 06 x4585
    Saw blade speedm/min35, 20, 50, 70
    Feed speedmm/s(Hydraulic CVT) (Hydraulic
    Main motor powerkW4
    Hydraulic system pressureMPa3.2 ~ 3.8
    Table heightmm700
    Maximum single feed lengthmmmanual
    Specification for clamping of bunching devicemm400x (30-90)
    Machine tool dimensionsmm2320X2350X1580
    Machine net weightkg2200
