    35m/Min Horizontal Band Saw , 500mm Horizontal Cutting Saw

    Ask Lasest Price
    Price : Negotiable
    Delivery Time : 1-2 months
    Brand Name : HJ
    Model Number : G4250
    Certification : ISO9001
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    35m/Min Horizontal Band Saw , 500mm Horizontal Cutting Saw

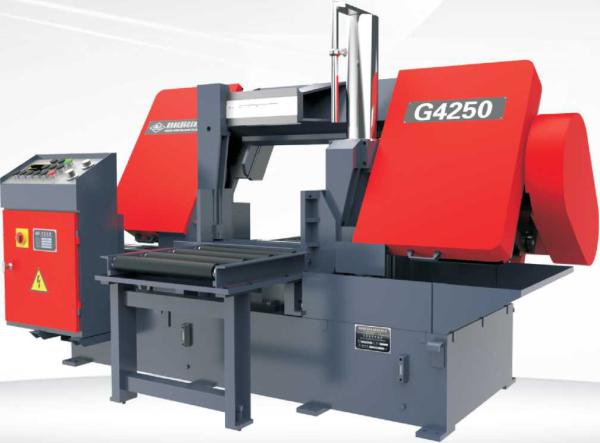

    HJ G4250 Double Column Horizontal Band Saw
    The product is mainly used for mass cutting of ferrous metal materials. It is suitable for cutting all kinds of metal bar materials and profiles with the specification of 500mm and step processing. It can be equipped with beam forming device to cut small specification materials into beam Widely used in all walks of life of mechanical processing.

    ParametersunitSpecifications
    G4250
    Maximum saw specification
    Round stockmmφ500
    The materialmm500X550
    Minimum saw specificationmmΦ50
    Saw blade specificationsmm41 x1. 26 x4880
    Saw blade speedm/min17, 35, 55, 75
    Feed speedmm/s0.2-5 (Hydraulic CVT)
    Feeding speedmm/s
    Main motor powerkw5.5
    Hydraulic system pressureMPa4.5 ~ 5.2
    Table heightmm660
    Maximum single feed lengthmmmanual
    Specification for clamping of bunching devicemm500x (50-150)
    Machine tool dimensionsmm3000X2560X1880
    Machine net weightkg2700
