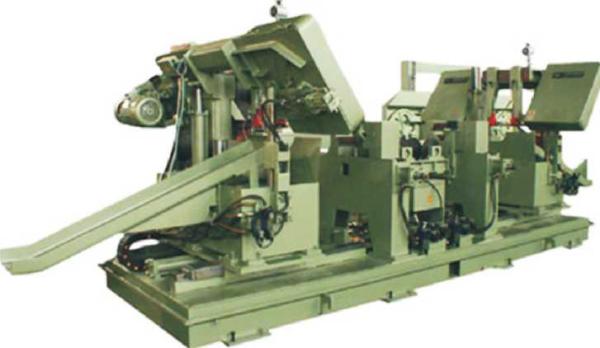

    HN054 Axle Horizontal Double Head Saw

    Product application


    This product is mainly used in the special sawing (aluminum) compound machine tool for shaft machining parts, such as train wheel and axle, which need both ends of sawing at the same time and punching the center hole.


    The basic parametersunitspecifications
    HN054
    Long shaft range of machining shaftmm1600-3000.
    Machining axle diameter rangemmΦ100 -Φ280.
    Specification of band saw blademm34 x1. 06 x4585
    Saw blade speedm/min20, 35, 50, 70
    Feed speedm/minStep-less speed regulation
    Main motor powerkw4X2
    Hydraulic motor powerkw4
    Cooling motor powerkw0.09 X2
    Hydraulic tank rongxingL150
    Cooling water tank rongxingL70X2
    Maximum machining axle blank heavy starkg1500
    The perpendicularity of the end of a sawn member facing its axismm/mm0.4/100
    Single piece processing beatmin /9.6
